Universal Power Supply

Our power supplies deliver clean, regulated AC power in a 3.5” high bench top or optional rackmount unit. The TVCS-PS-P1350 model has a fixed output of 115V 400Hz Single phase, ideal for testing the TTU-205 Test Sets. The TVCS-PS-1351 model has a variable output with selectable frequency (50/60/400 Hz) and voltage output for testing of a variety of test equipment including the TTU-205 and other air data test sets.

  • P/N: TVCS-PS-1350 (fixed 115V 400Hz output) NSN: 6130-01-645-8882
    provides a fixed 115 VAC, 400Hz, Single Phase power for TTU-205’s sets
  • P/N: TVCS-PS-1351 (variable output)
    provides a variable output voltage with selectable frequency (50/60/400 Hz)
  • Rackmount kit included with supply, add a “R” to the part number

The TVCS-PS-1350 and TVCS-PS-1351 Series delivers 1350 VA of clean, regulated AC power in a 3.5” high bench top or optional rackmount unit. The supply is ideal for testing and operating equipment such as the TTU-205 and other test equipment. The variable unit can simulate any world wide utility, aircraft and shipboard power source and is ideal for calibration labs. Simply select the required frequency, choose a voltage range, dial up your desired voltage, and you’re ready to test. The fixed output model provides a 115V 400Hz output for testing of TTU-205 test sets and is nationally stock listed under NSN: 6130-01-645-8882.

The TVCS-PS-1351 variable model features front panel features a digital rotary encoder to set the voltage and a selector switch to set the frequency. Both supplies deliver clean sinewave output with excellent line and load regulation, high efficiency and low harmonic distortion. In addition there is a unique overload protection system that folds back voltage to maintain rated output current without waveform distortion. Small size, low cost, quiet operation and high efficiency make the supplies ideal for industrial product testing, avionics testing and power conversion.

TVCS-PS-1350 and TVCS-PS-1350R Specifications
• AC Power 1350 VA
• Input Voltage 120 VAC, +/- 10%
• Input Frequency: 47-440 Hz
• Output Voltage: 115V Fixed, isolated
• Output Frequency: 400Hz Fixed

TVCS-PS-1351 and TVCS-PS-1351R Specifications
• AC Power 1350 VA
• Input Voltage 120 VAC, +/- 10%
• Input Frequency: 47-440 Hz
• Output Voltage: Selectable 0-135 V or 0-270 V (option), both isolated
• Output Frequency: Selectable 50 Hz, 60 Hz or 400 Hz (option)

Universal Power Supply Brochure

Universal Power Supply

Universal Power Supply Manual
Manuals are not available for download from the website at this time. Please contact us directly to request manuals.

Products & Support Equipment

Products

TTU-205 Spare Parts, PPCM Spare Parts
Leak Tune-Up Kit and Hose Sets View Product
TTU-205 Spare Parts, PPCM Spare Parts
TTU-205, PPCM and FLMTS Spare Parts View Product

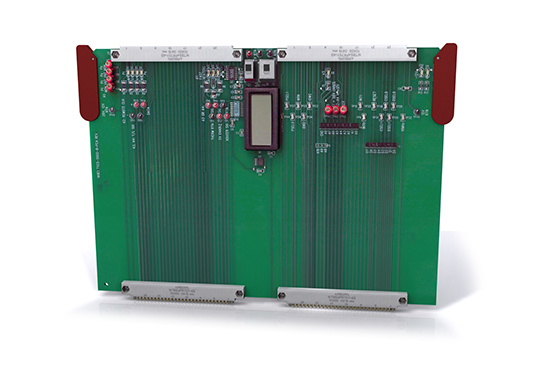

Precision Trim Extender
Precision Extender Board View Product
Remote Control Unit
TTU-205 Remote Control Unit View Product

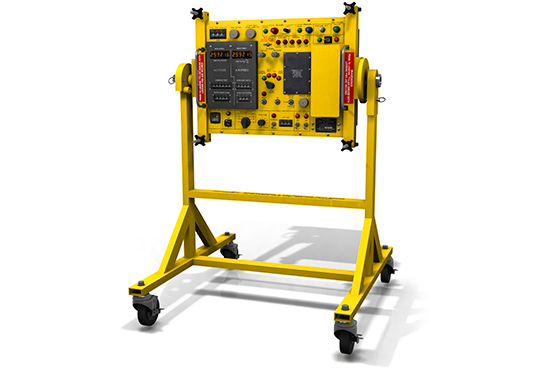

Maintenance and Calibration Test Stand
Maintenance and Calibration Test Stand View Product

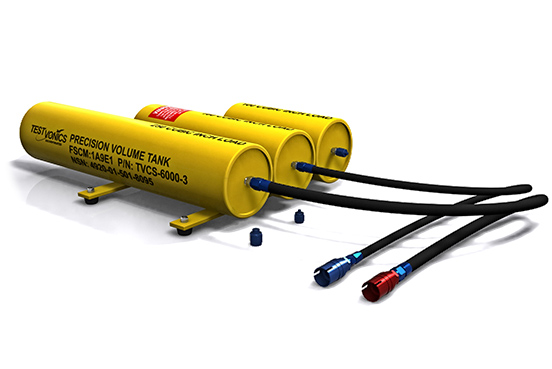

Precision Volume Tank
