RF and Microwave Anechoic Chambers

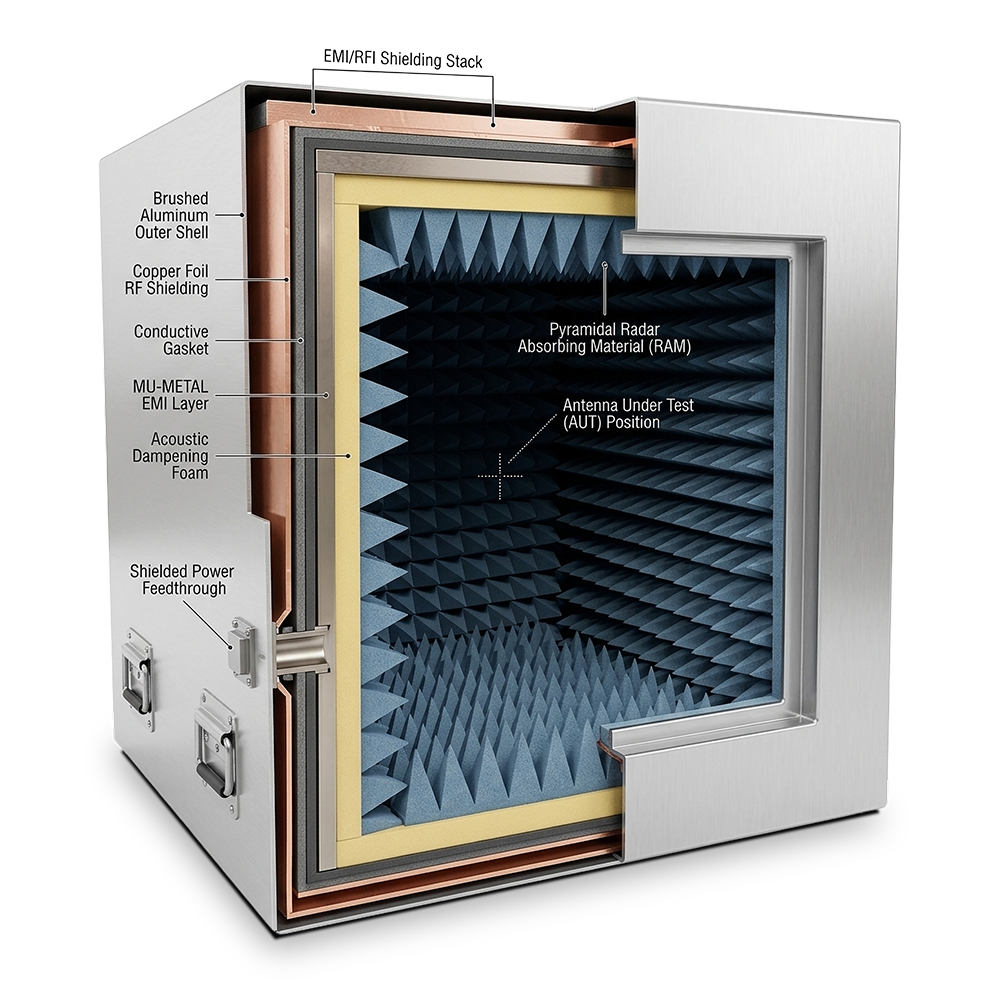

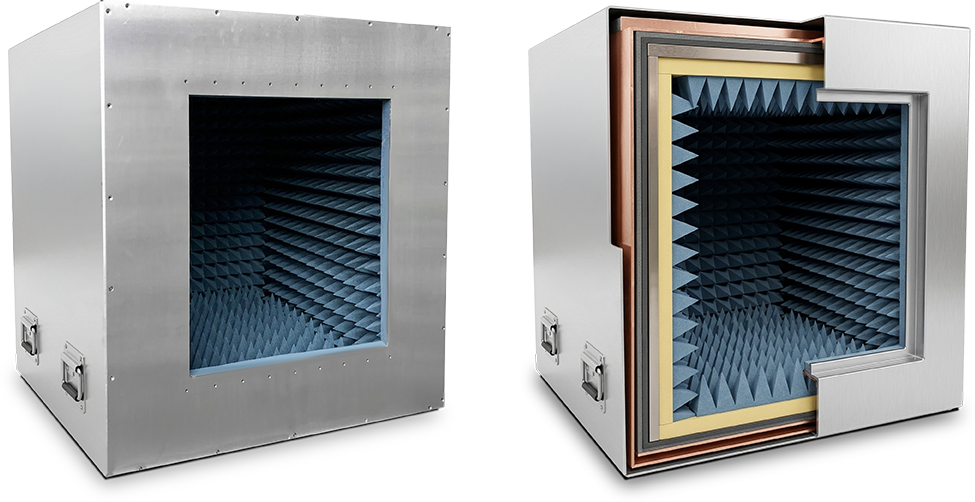

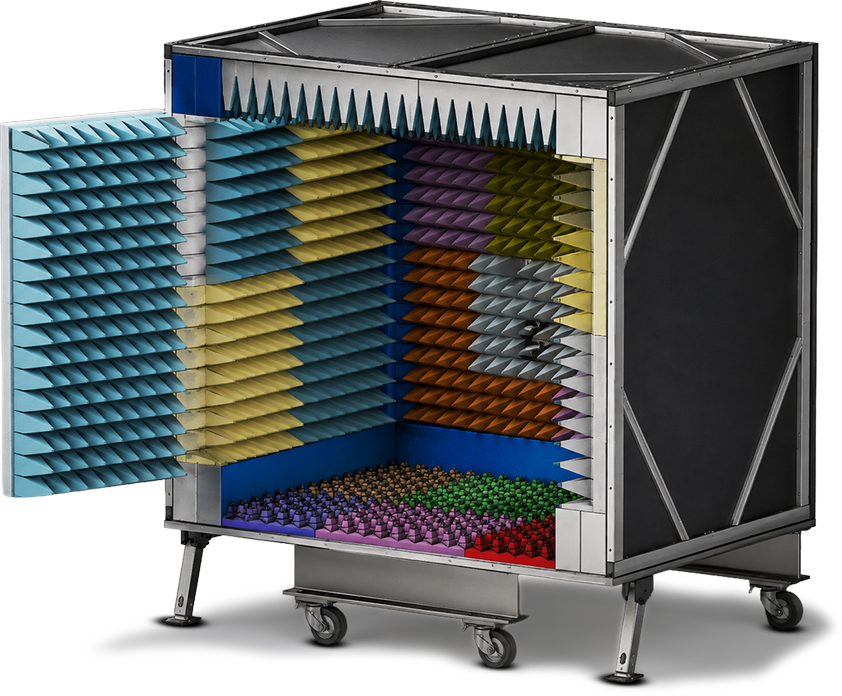

Eastern OptX Series 1500 Portable Anechoic Chambers are used for RF and Microwave Test Applications. These chambers are available in a variety of frequency bands with built-in antennas and cabling, as well as access panels for modifications and expansion.

Standard System Features
• Single and double ended systems
• Up to 40 GHz
• Swappable Antenna windows
• Easy antenna replacement
• Expandable
• Lightweight aluminum construction
• Movable Gimbal Options with remote control capability
• On-site Assembly and Installation available

RF Hat Style Chamber
• One open end, removable window from the antenna mount end
• Removable RF Antenna Window. The window may be one of several, easily swappable antenna mounts for simple and rapid system reconfiguration.
• Table top or wheel base options
• Removable Floor

RF Hat Style Chamber with wheeled base

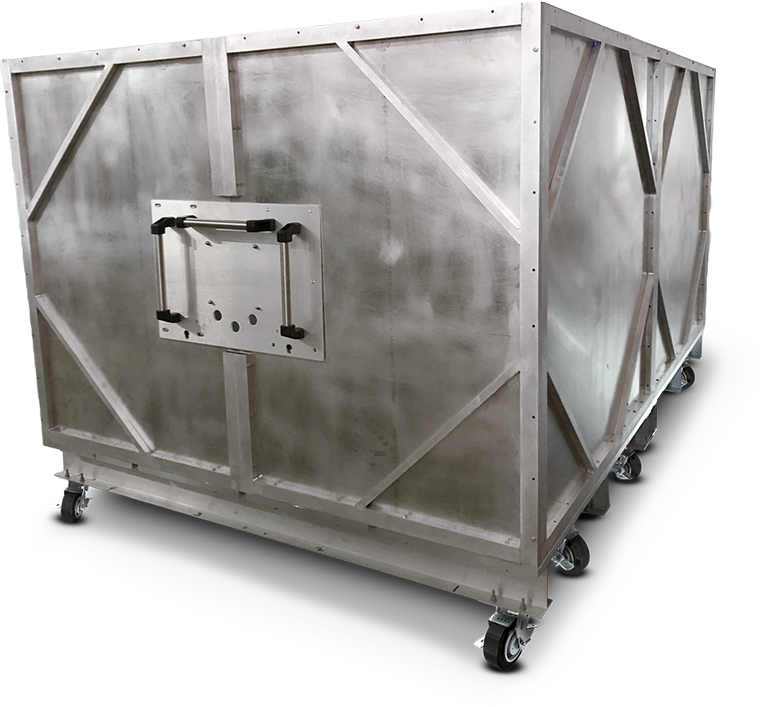

Large RF Hat Style Chamber with wheeled base
