adts-1555-front-smAir Data Calibrator Support

Support for the ADC-2500 Series Air Data Calibrators and ADTS-1555 Series Air Data Test Sets

ADC-2500 PART NUMBER

P/N: ADC-2500
NSN: 6695-01-581-8231

ADC-2550 PART NUMBER

P/N: ADC-2550
NSN: 6695-01-590-1161

ADC-2522 PART NUMBER

P/N: ADC-2522
NSN: 4920-01-105-0016

ADC-2550 SERIES MANUALS

ADC-2550 Operating Instructions
Publication No. TVCS-2550-OPI

ADC-2550 Calibration Instructions
Publication No. TVCS-2550-CAL

ADC-2550 Illustrated Parts Breakdown
Publication No. TVCS-2550-IPB

ADC-2550 Remote Communications Manual
Publication No. TVCS-2500-COM

This is a notice to all TestVonics Air Data Calibrator users. We have had several calls from users who are finding a Track loss during Auto Exercise. TestVonics found several users using 1/4” tube with an adapter fitting(s) from the vacuum source to the rear panel and getting a track loss condition. For this reason, we are releasing this notice for all users to check the following:

  • Vacuum Source Hoses - The hosing from the vacuum source to the ADC rear panel must be at least 3/8” diameter. TestVonics recommends MIL-H-5593-6 hosing to meet this requirement. TestVonics offers a Vacuum Hose Assembly (Part No. ADC-2500-VAC-1-08) for purchase that meets this requirement.
  • Pressure Source Hoses - The hosing going from the pressure source to the ADC-2500 rear panel must be at least 1/4” diameter. TestVonics recommends using MIL-H-5593-4 hosing from the Pressure source. TestVonics offers a Pressure Hose Assembly (Part No. ADC-2500-PRES-1-08) for purchase that meets this requirement.

Raptor Scientific has Vacuum and Pressure Sources available for purchase if an adequate source is not available.

ADC-2500 Vacuum Pressure Tubing Notice

If the product must be shipped for any reason through a common carrier, it must be packaged properly to minimize the risk of damage. FAILURE TO PROPERLY SHIP THE ADC-2500 SERIES COULD VOID THE SYSTEM WARRANTY.



The ADC-2500 operates on a custom embedded operating platform. Most ADC-2500 systems do not have a built-in write filter to protect the OS from sudden shut downs. All ADC-2522, ADC-2550, and ADC-2555 systems feature write protection, but should still be powered down as instructed below. The safest way to power down the ADC-2500 Series is as follows:

  • Locate the 'Start' button in the lower left corner
  • Select the 'Shut Down' option from the menu
  • They system will shut off, when the screen turns white, switch off the Power

ADC-1000 Air Data MonitorAir Data Monitor Support

Support for the ADC-1000 Series Air Data Monitors

adts-3350-1ADTS-3300 Series Support

Support for the ADTS-3350 and ADTS-3300JS Series Air Data Test Sets

ADTS-3300JS SERIES

P/N: ADTS-3300JS
NSN: 4920-01-618-9512

ADTS-3350 SERIES

P/N: ADTS-3350MR
P/N: ADTS-3350ER
NSN: 4920-01-662-3920

ADTS-3300 SERIES MANUALS

ADTS-3300 Operation and Maintenance Instructions Manual
Publication No. TVCS-3300-OIM

ADTS-3300 Calibration Manual
Publication No. TVCS-3300-CAL

ADTS-3300 Illustrated Parts Breakdown
Publication No. TVCS-3300-IPB

ADTS Remote Communications Manual
Publication No. TVCS-SCPI-COM

If the product must be shipped for any reason through a common carrier, it must be packaged properly to minimize the risk of damage. FAILURE TO PROPERLY SHIP THE ADTS-3300 SERIES COULD VOID THE SYSTEM WARRANTY. Follow the instructions to properly pack the system for shipment.



adts-3150-1ADTS-3150 Series Test Set Support

Support for the ADTS-3150 Series Air Data Test Sets

ADTS-3150 PART NUMBER

P/N: ADTS-3150LR
P/N: ADTS-3150MR
P/N: ADTS-3150ER
Software Version: 3.1.3

ADTS-3150 SERIES MANUALS

ADTS-3150 Operating Instructions
Publication No.: TVCS-3150-OIM
Current Revision: 1

ADTS-3150 Calibration Instructions
Publication No.: TVCS-3150-CAL
Current Revision: 2

ADTS-3150Illustrated Parts Breakdown
Publication No.: TVCS-3150-IPB
Current Revision: 1

ADTS Remote Communications Manual
Publication No.: TVCS-3300-COM
Current Revision: 2

If the product must be shipped for any reason through a common carrier, it must be packaged properly to minimize the risk of damage. FAILURE TO PROPERLY SHIP THE ADC-2500 SERIES COULD VOID THE SYSTEM WARRANTY. Follow the instructions to properly pack the system for shipment.

TTU-205 Test Set Support

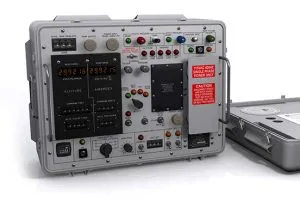

Support for Kollsman, Inc. TTU-205 Series Pressure-Temperature Test Sets
