Pitot Static Test Set
- Ruggedized High Precision Pitot Static Test Set (RVSM Compliant)
- NSN: 4920-01-618-9512
- Calibrate, test and troubleshoot Aircraft & Instrumentation
- Currently in use by USAF and Foreign Military Services
The ADTS-3300JS features a brilliant 8.4-inch LED backlit LCD display. The display features an optically bonded resistive touchscreen and adjustable LED back-lighting, which provide optimal visualization and increase viewing angle in direct sunlight. The back-lit keypad is used to control the test set and can be operated using gloves or mittens. The ruggedized case features recessed hardware and wheels and a retractable handle for easy one person transport. The test set operates using a wide range of input power (90-260 VAC, 45-440 Hz power) making it ideally suited for the varying hangar, ramp and flight line power sources.

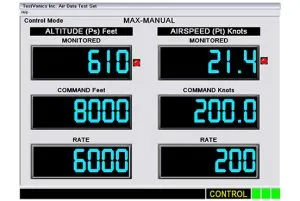

The ADTS-3300JS software features an uncluttered and intuitive graphical interface. The operating software has been designed to virtually eliminate the operator learning curve. Modes of operation are easily selectable and can be cycled while testing.

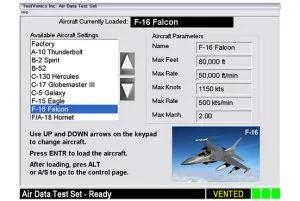

The ADTS-3300JS is designed with both hardware and software safety features designed for maximum protection when testing. The test set features input pressure regulation, over-range, over-limit and over-pressurization protection. Micro-porous filters and screening prevent debris from entering the system. The test set is equipped with pressure relief valves to protect the pneumatic system components and the unit under test (UUT) from damage. In the unlikely event that the test set loses power, the UUT is isolated. The manual vent switch on the front panel can then be used to safely vent both the test set and the UUT to ambient. The software has a built-in Aircraft Select function which allows the operator to set the test set up for the UUT. Once set, the software automatically limits the ranges and rates for the specific aircraft under test. Test profiles can be created for routine testing which provide improved test consistency.
The ADTS-3300JS can be calibrated automatically through software. Corrections are done through software requires no mechanical adjustments. The transducers are able to hold their accuracy for a period of one year.
The ADTS-3300JS Remote Control Unit (RCU) features a full color touchscreen LED display and a back-lit keypad. The remote features the same display format found on the main unit and can perform all functions of the test set remotely. A 25 or 50 foot remote cable is supplied.
