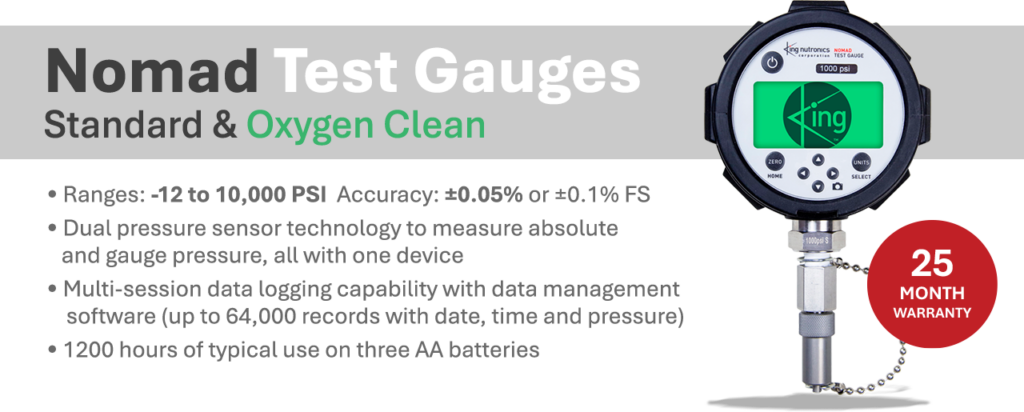

Nomad Digital Test Gauge

Product Details

The Nomad Test Gauge combines durability with advanced digital functionality. Replace your 0.1% F.S. mechanical dial gauges with the next generation in digital pressure measurement. Engineered to handle the most demanding requirements including certified, oxygen-clean applications.

The Nomad Test Gauge’s intuitive user interface provides quick access to adjust the most common features and modes. Accessible with the front panel buttons, configure and customize changes to AUTO SHUT OFF, Hi/LOW ALARMS, ABSOLUTE/GAUGE SENSOR, UNITS LOCK, AND DATA LOGGING.

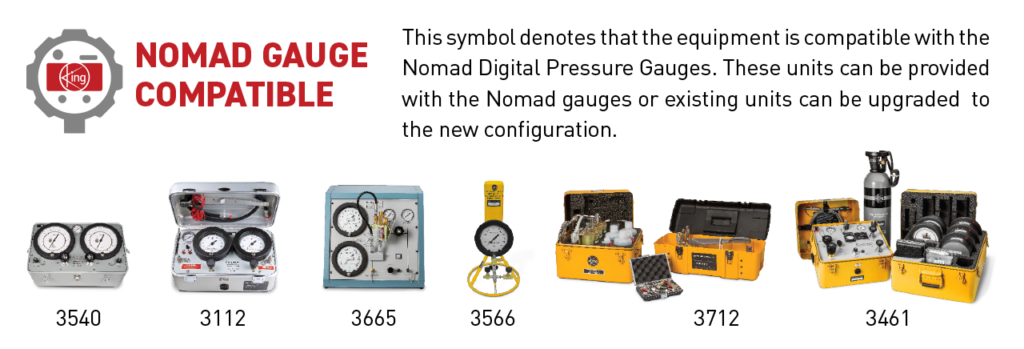

Oxygen Clean* and standard version Nomad Test Gauges are available in pressure ranges from 15 psi to 10,000 and can replace bourdon-type dial gauges such as those supplied with the  Model 3461. Upgrade your Model 3461 with a set of Nomad gauges and add advanced features to your portable pressure calibration system for a fraction of the cost of Heise® 0.1% F.S. dial gauges.

Oxygen Clean Nomad Test Gauge sensors are isolated, fluid-filled with a special non-flammable, oxygen-clean compatible material.* All Oxygen Clean Nomad Gauges are cleaned and packaged per ASTM G93 – 03 and have a minimum over-pressurization safety factor**.

*Nomad Test Gauges are CE marked for European compliance and RoHS Directive 2011/65/EU. Other Oxygen Clean specifications can be provided upon request.

** When equipped with quick disconnect gauge adapters, the Nomad Test Gauge is also protected with an integrated pressure relief valve.

  • Standard and Oxygen Clean versions are available.
  • The aluminum bezel prevents damage from the mounting and removal processes.
  • CE Tested and Approved
  • 25-month warranty
  • Dual pressure sensor technology to measure absolute and gauge pressure with one device
  • High and low alarm settings with icon and red backlight indication
  • Dedicated interface to see live readings for leak testing and min/max function
  • Snapshot readings with date and time stamp
  • Multi-session data logging capability with data management software (up to 64,000 records with easy-to-read menus and date, time and pressure)
  • USB communications
  • 1200 hours of typical use on 3 AA alkaline batteries
  • Restrict engineering units and menu items with lock feature
  • ASME B40.7 Grade 5A accuracy

Range Options (PSI):
-12 to 15, -12 to 30, -12 to 100, -12 to 200, -12 to 300, -12 to 500, 0 – 1000, 0 – 2000, 0 – 3000, 0 – 5000, 0 – 10000

Connection:
¼” MNPT – 316 stainless steel

Pressure Accuracy:
±0.1%
Full Scale
Includes all effects of linearity, hysteresis, repeatability, temperature and stability based on one year

Vacuum Accuracy:
±0.25%
Full Scale
Applies to ranges 500 PSI and below with an isolated sensor

Display:
Tri-color graphics 240 x 120 with selectable backlight color

Units:
PSI, BAR, MBAR, KGCM2, MSW, FTSW, INHG, MMHG, KPA, MPA, TORR, INH2O@4°C, INH2O@20°C, NH2O@60°C, CMH2O@4°C, CMH2O@20°C, MMH2O@4°C, MMH2O@20°C, FTH2O@20°C, FTH2O@60°C, CUSTOM

Power:
3 AA alkaline batteries
1200+
hours of typical use
with low battery indication at 3.7 volts

Temp:
Compensated operating range
–14°F to 122°F
(-10°C to 50°C)

Enclosure:
Powder-coated aluminum
IP65, 1.7 pounds, 4″ outer diameter, 5.6″ height, 1.7″ depth
