Model 5120 Low Pressure Gauge Calibrator

Product Details

The Model 5120 Low Pressure Gauge Calibrator is a next-generation portable pneumatic pressure calibrator engineered to bring lab-grade precision anywhere. With intuitive software interface, technicians can move seamlessly between manual and automatic operation, controlling and monitoring pressure output in both static and dynamic modes across the full range of specified accuracies. Automated leak testing and head correction take the guesswork out of every calibration, while an automated Contamination Prevention System (CPS) allows the units to calibrate a variety of test equipment, with minimal risk or cleaning.

Features
Specifications
Brochure

Calibration labs need equipment that keeps pace with the field and the King Nutronics Model 5120 Low Pressure Gage Calibrator (LPGC) delivers exactly that. Engineered as a fully portable pneumatic pressure calibration system, it combines an intuitive interface with flexible operating modes, giving technicians the choice of manual control or fully automated sequences. Whether verifying a single gage in static mode or running a dynamic pressure profile across a range of test instruments, the LPGC adapts to the task at hand, with built-in automated leak testing and pressure head correction ensuring every reading reflects true, traceable accuracy from the very first connection.

At the heart of the LPGC is our interchangeable transducer technology. Each transducer stores its own range, accuracy, and calibration/characterization data on board, and the system’s plug-and-play architecture automatically recognizes new or replacement transducers. The transducers cover the range of vacuum to 100 PSIA, work seamlessly together across the full pressure range, complete with over-pressure protection that guards against backflow of contaminated gas. Transducers remain easily accessible, removable, and cleanable with non-ozone-depleting solvents, keeping the system field-serviceable without specialized tools or downtime.

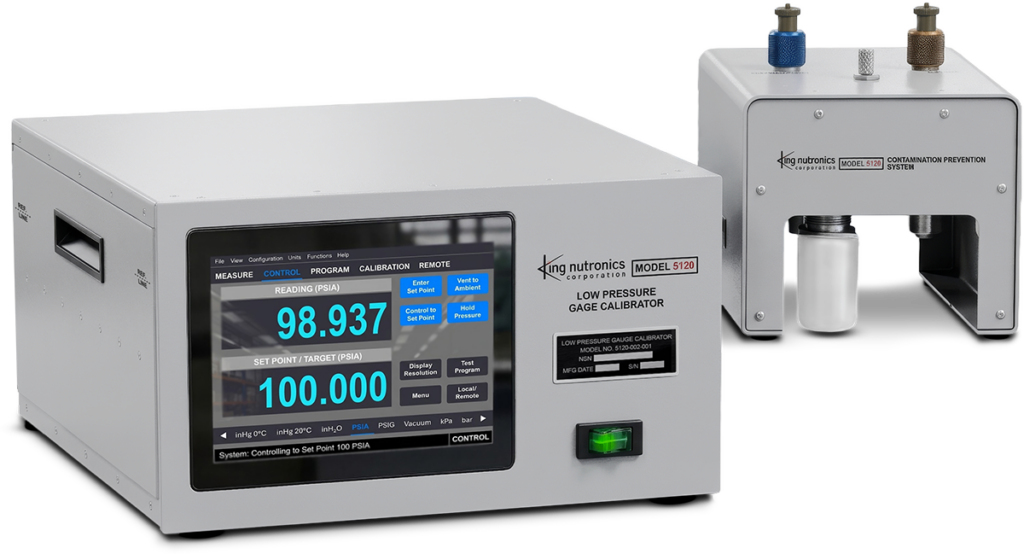

Model 5120 with CPS

Model 5120 Contamination Prevention System

The Model 5120 CPS is designed to protect the main unit from liquid and vapor contamination. Unlike other contamination prevention systems on the market, our design does not permit reverse flow under normal operating conditions. This is achieved by improving the flow architecture and maintaining true unidirectional flow throughout the entire system, regardless of the configuration or operating mode. The CPS is available with the LPGC or as a standalone product for use with other low pressure systems.

Model 5120 Vacuum Source

A vacuum source is required when using the Model 5120 Series as a controller. Our compact, high performance oil-free vacuum source features a hermetic design providing a robust pumping speed of 60 Lpm and a low base pressure. Available in 115V and 220V AC models, here are a few additional features:
• Small footprint, low weight, and low power requirements
• Oil-free, for no contamination of the vacuum system
• Hermetic design with fully isolated motor and bearings
• Lower base pressure than diaphragm pumps
• Low noise and vibration
• NSN: 4310-01-653-2521 (115 VAC), NSN: 4310-01-670-3652 (220VAC)

The LPGC System delivers laboratory-grade accuracy, in a portable design with a level of confidence King Nutronics has provided for over 60 years.

Model 5120	Specification
Absolute Range	1 to 100 PSIA
Absolute Accuracy	1 to 100 PSIA: ±0.1% IV or 0.005 PSIA, whichever is greater 15 to 100 PSIA: ±0.01% IV or 0.005 PSIA , whichever is greater
Gauge Range	-14 to 100 PSIG
Gauge Accuracy	±0.1% IV or 0.005 PSIG, whichever is greater
Vacuum Range	0 to 28.000 inHg
Vacuum Accuracy	±0.1% IV or 0.1 inHg, whichever is greater
Units of Measurement	PSIA, PSIG, PSI, kPa, bar, mbar, inHg @ 0°C, mmHg @ 0°C, inH₂O @ 4°C, inH₂O @ 60°F, inH₂O @ 20°C, ft-H₂O @ 4°C, ft-H₂O @ 60°F, ft-H₂O @ 20°C
Resolution	0.001 PSIA, 0.001 PSIG, 0.001 inHg, 0.01 mmHg, 0.01 mbar, 0.001 Bar, 0.001 kPa, 0.001 inH₂O, 0.001 ftH₂O
Operating Medium	Clean Dry Air or Nitrogen (non-density sensitive)
Display	10.4-inch full-color display
Interfaces	RS-232, USB, LAN, VGA, IEEE-488.2
Vacuum Port	Male JIC 37° -6 AN bulkhead, SS (rear panel)
Pressure Port	Male JIC 37° -4 AN bulkhead, SS (rear panel)
Power	90-265 VAC, 45 – 440 Hz, 1 Phase
Dimensions	17.0 x 10.0 x 16.4 in (WxHxD)
Weight	40 lbs (18.14 kg)
