Model 3566 Tire Gauge Tester

Product Details

Designed for test and calibration of piston-actuated pneumatic pressure gauges such as those used for measuring the pressure of aircraft tires, landing gear struts, accumulators, and other similar pneumatic devices, the Model 3566 is suitable for testing and calibrating tire gauges and inflator assemblies with an operating range of 50 to 600 psig.

  • Model3566_Web02Tester cylinder serves as an accumulator and simulates the volume of an aircraft tire.
    6-inch diameter gauge, accurate to ±1/4% of full scale range.
  • Reference gauge is protected against over-pressurization by a gauge saver.
  • Measures the pressure of aircraft tires, landing gear struts, accumulators, and other similar pneumatic devices.
  • 140 cu inch tester cylinder
  • The tester is suitable for testing and calibrating tire gauges and inflator assemblies with an operating range of 50-600 psig.
  • Reference Gauge: 0 to 600 psig
  • Accuracy: ±¼% of Full Scale
  • Dial: 6” Diameter
  • Cylinder Volume: 140 Cubic inches
  • Valve Ports:
    Supply Valve: ¼” Female NPT
    Vent Valve: ¼” Male NPT
    Weight: 25 lbs.

Pressure/Vacuum Calibrators

Products

Model3712_HydraulicHandPump_Web05
Model 3712 Hydraulic Pressure Calibrator View Product
nomad-test-gauge-combines-oxygen-product-picture-2

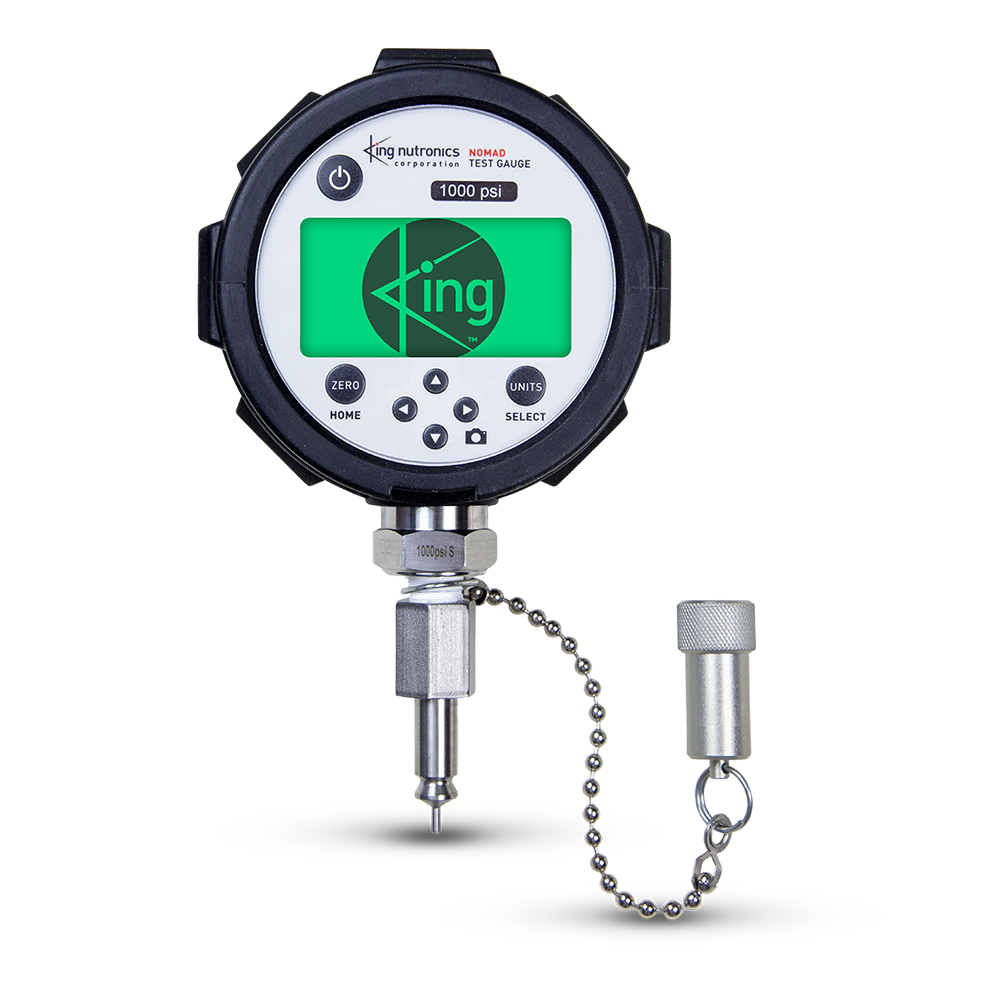

Nomad Digital Test Gauge View Product
