Modernize Your Portable Pressure Calibration System with Nomad Pressure Gauges

Traditional bourdon-type dial gauges have been the standard for portable pressure calibration systems. Today’s calibration environments demand more flexibility, durability, and digital capability.

King Nutronics Nomad Test Gauge Series delivers next-generation portable pressure measurement, combining rugged reliability with advanced digital functionality in a compact, field-ready design.

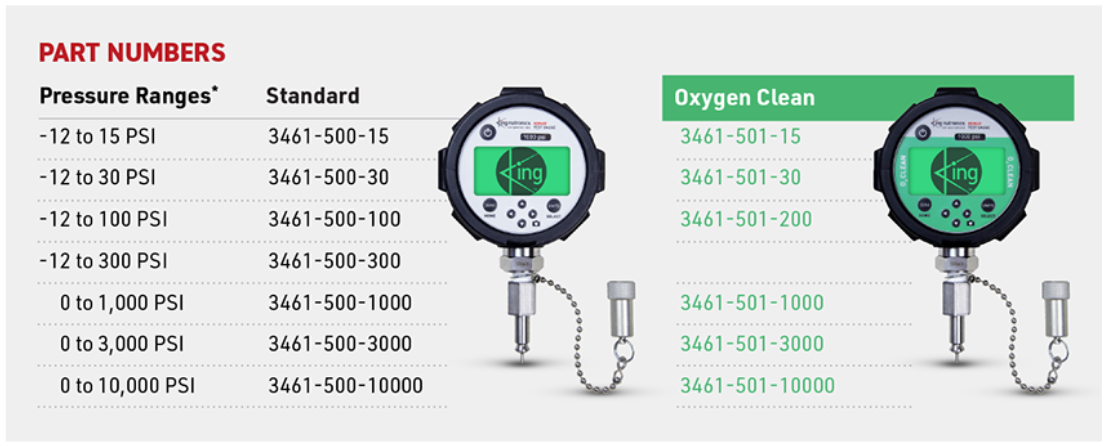

Available in accuracy of 0.05% or 0.1% FS and pressure ranges from -12 psi to 10,000 PSI, Nomad Test Gauges are designed to replace traditional bourdon-type dial gauges, including those supplied with portable calibration systems. By upgrading to Nomad gauges, users can add powerful digital features to their existing systems for a fraction of the cost of traditional dial gauges.

Built for demanding aerospace, defense, and oxygen service applications, Nomad gauges are available in both standard and certified oxygen clean configurations. Oxygen Clean models feature isolated, fluid-filled sensors using a non-flammable, oxygen-compatible fill material and are cleaned and packaged in accordance with ASTM G93-03 (2019).

Beyond accuracy and durability, the Nomad Test Gauge provides operators with fast, intuitive access to key functions directly from the front panel, including:
• Auto Shut Off
• High / Low Alarms
• Absolute or Gauge Sensor Selection
• Units Lock
• Data Logging

When equipped with a King Nutronics quick-disconnect adapter, the Nomad gauge also benefits from integrated over-pressure protection for added safety in the field.

This symbol denotes that the equipment is compatible with the Nomad Digital Pressure Gauges. These units can be provided with the Nomad gauges or existing units can be upgraded to the new configuration.

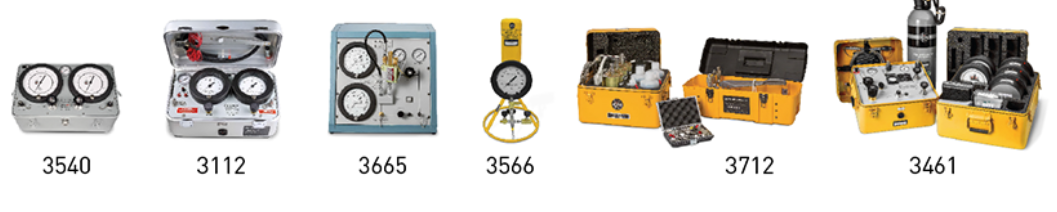

Whether you are modernizing an existing portable pressure calibration system or replacing aging dial gauges, the Nomad Test Gauge offers a smarter, more capable solution engineered for today’s operational requirements. Currently, the King Nutronics systems below that are eligible for conversion to the Nomad gauges are:

• Model 3461 Portable Pressure Calibration System
• Model 3112 Portable Live Pressure Tester
• Model 3712 Hydraulic Pressure Calibrator
• Model 3540 Portable Pneumatic Gauge Tester
• Model 3665 Tire Gauge Calibrator
• Model 3566 Tire Gauge Tester
