Take Radar Altimeter Testing to New Heights

Precision Radar Altimeter Testing Starts Here

Eastern OptX Series 6000 Altimeter Test Sets are designed to test and calibrate radar altimeter systems. The Series 6000 provides multiple, programmable delays with front panel and/or remote computer control. It features ultra-wide bandwidth, low loss, high isolation, and high dynamic range. Able to simulate altitudes up to 50,000 feet, the test set operates from 4.2 to 4.4 GHz and offers altitude accuracy up to 0.1 %.

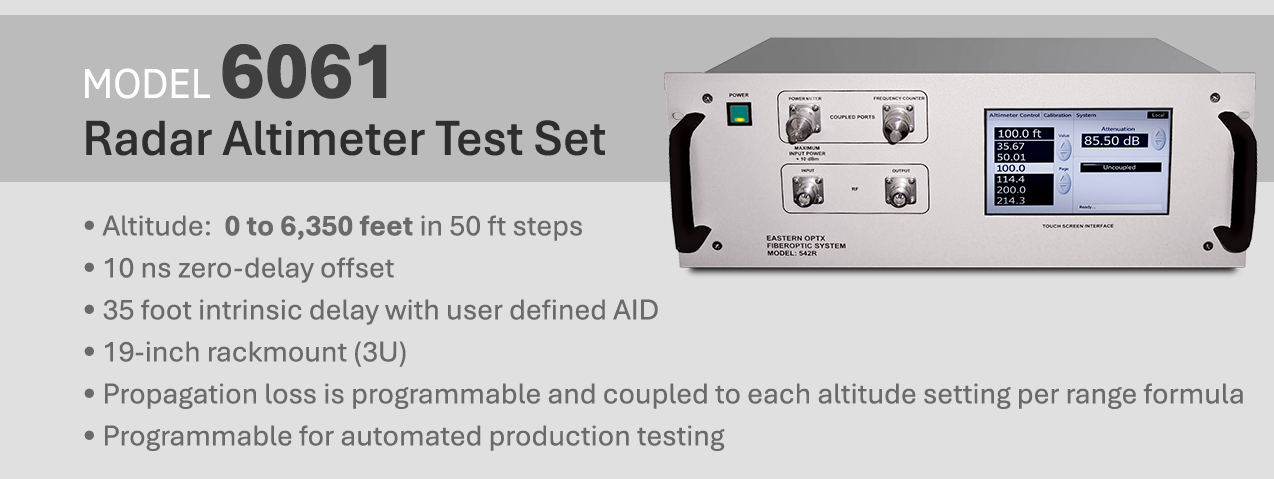

The Model EA6061 Altimeter Test Set is designed to test and calibrate any and all radar altimeter systems regardless of protocol or encryption including FMCW and LPI (Low Probability of Intercept). The EA6061 provides multiple, programmable delays with front panel and/or remote operation. It features ultra wide bandwidth, low loss, high isolation, and high dynamic range. Able to simulate various altitudes, it operates from 4 to 5 GHz and offers NIST traceable accuracy up to 2 inches. Features include:

• Easy, repeatable operation
• Altitude Settings from 0 to 6,350 feet in 50 ft steps
• Propagation loss is programmable and coupled to each altitude setting per range formula
• Built-in automated self-calibration using external PNA
• Programmable for automated production testing
• Four aircraft cable compensation settings
• 10 ns zero-delay offset
• 35 foot intrinsic delay with user defined AID
• 19-inch rackmount (3U)

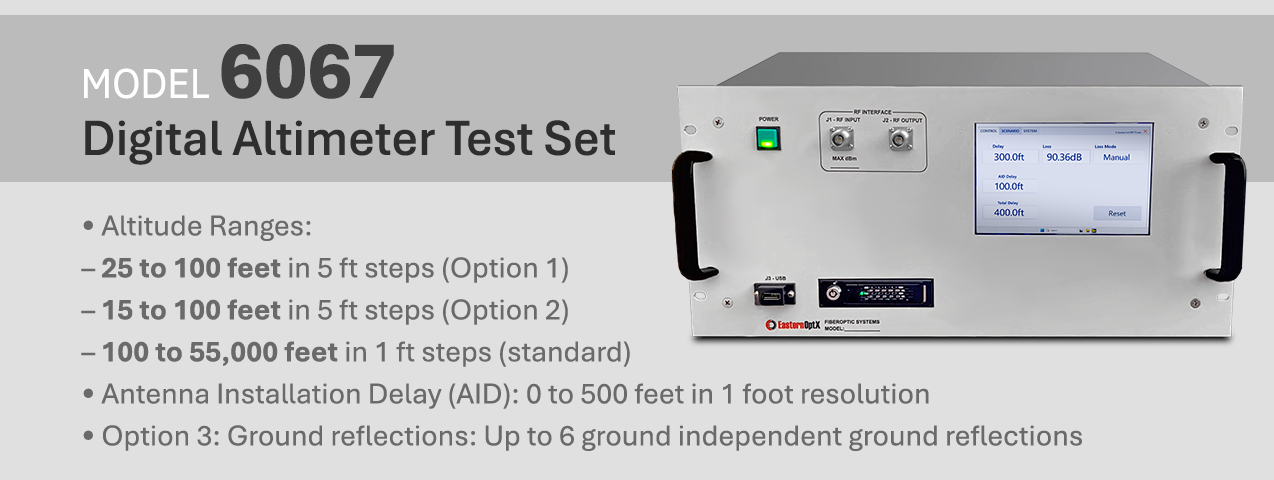

The Model 6067 Digital Radar Altimeter Test Set delivers precise testing and calibration of radar altimeter systems across a wide range of platforms and technologies. It provides continuous, fully programmable delay simulation through intuitive front-panel controls or remote operation via SCPI command interface. The Model 6067 provides high speed, ascent and decent profiles that seamlessly recreate real-world flight paths for any radar altimeter.

Engineered for performance, the Model 6067 features wide bandwidth, low insertion loss, high isolation, and exceptional dynamic range. Operating from 4.2 to 4.4 GHz, the system simulates altitudes up to 200,000 feet with accuracy to 0.1%, enabling reliable verification of virtually all radar altimeter models and architectures.
