Series 7000 Channel Replicator

Series 7000 Multi-Radio Channel Replicator
contact us to request a quote

Product Details

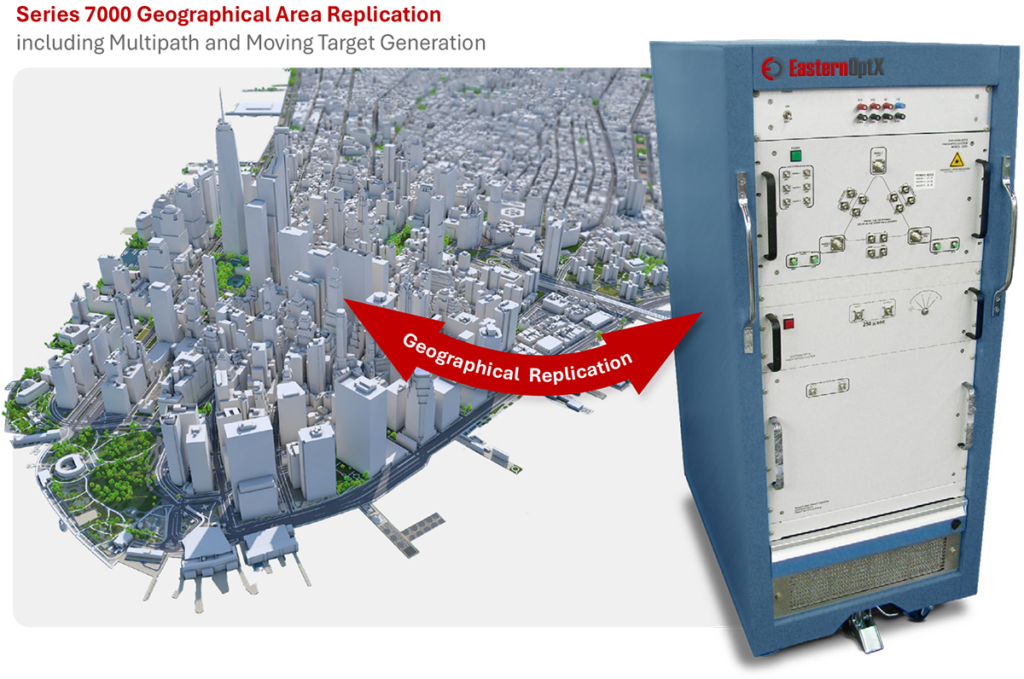

The Series 7000 System is a multi-radio test network that replicates the propagation path of real-world applications. With complete bi-directional capability radios may operate in full duplex mode at distances up to 150 nautical miles. A network of channels is provided for complete multiple radio interaction, and additional channels may be added to duplicate real world fading conditions. The 7000 is not an emulator. It is a channel replicator and will operate with any and all communication protocols, modulations, encryptions, and frequency agile modes. This system will dramatically reduce testing cost and time by bringing the test range to your test bench.

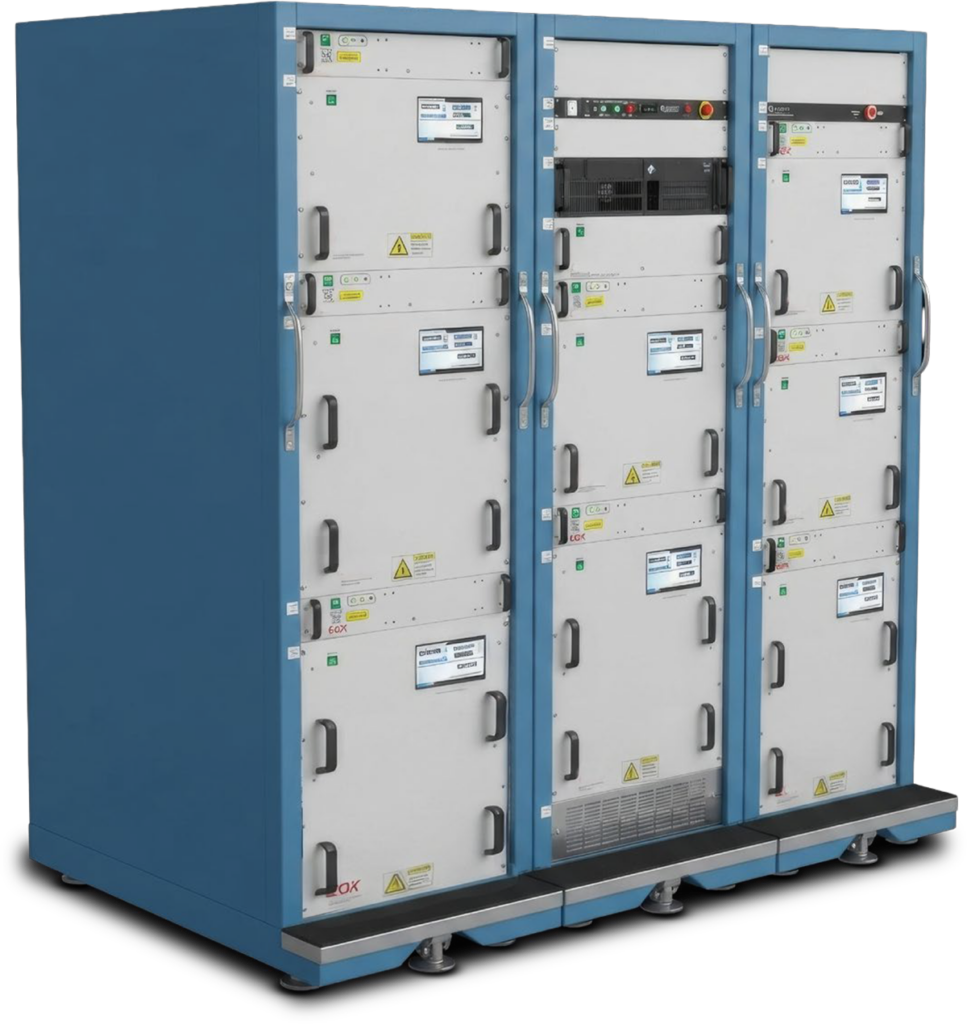

2-10 Radio Ports

Radio-to-radio distances from 1 to 50,000 m.

Delay Configurations: Discrete, Progressive, or Combined. Discrete and Progressive

Multipath Replicator Option

Amplitude Control – Optical and/or RF

Remote Control Interface

Front Panel LCD Touch Screen Control

External delay option for future expansion

Octave Input Bandwidth (multi-octave systems available with automatic input frequency selector)

Single or multiple air interfaces may be tested simultaneously

Doppler Option (Moving Target)

Interfere Injection (Jammer)

Built-In Self-Test

Multi-Radio test network that replicates the propagation path of real-world applications

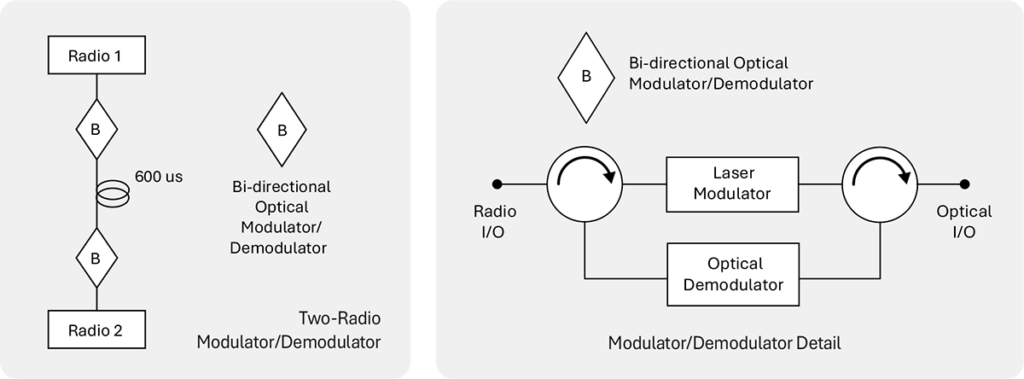

Multiple radios may be connected to the network, which allows for full duplex operation

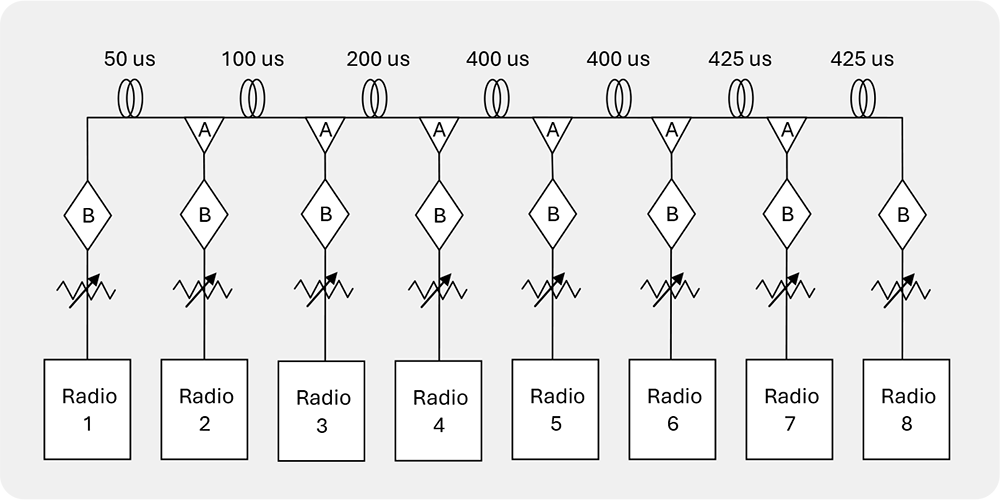

Delays between radios may be fixed or variable, and optional amplitude control provides the appropriate propagation loss

2 – 10 Radio Ports

Radio to Radio distances from 1 to 50,000 m

Doppler Option (Moving Target)
