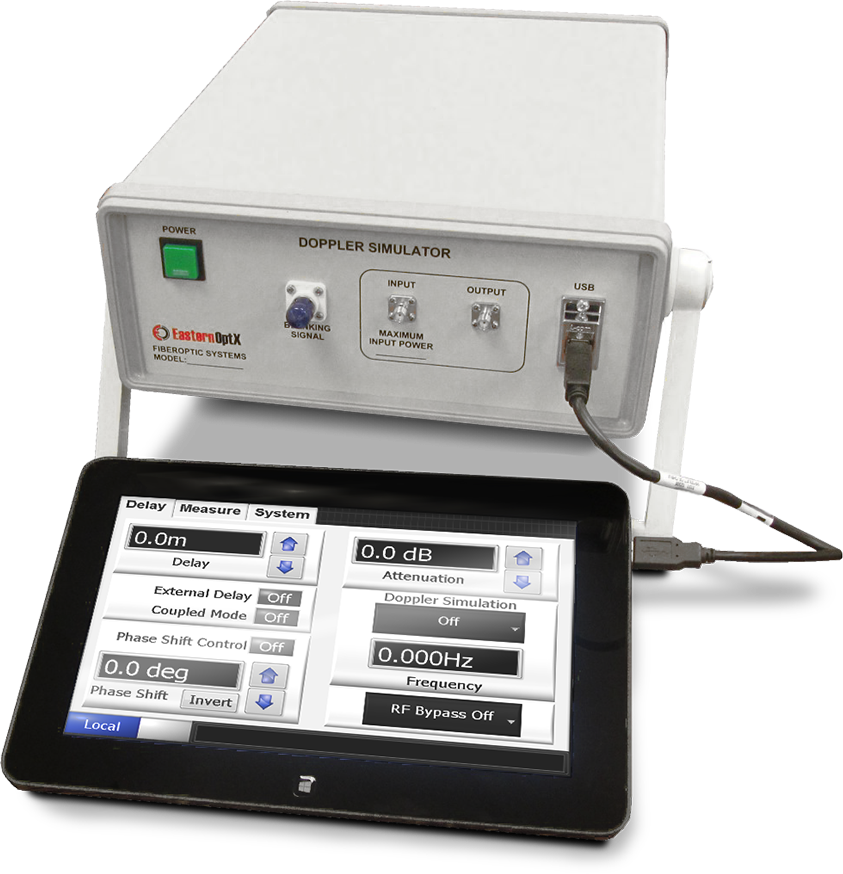

Series 5000 Doppler Generator

Product Details

Eastern OptX introduces moving target generators covering radar frequencies from 1 to 18 GHz. These compact systems provide target generation with speeds from 0 to 3000 MPH, and allows the user to set target and radar source speeds and directions. Systems may be operated remotely using wireless control with scenario generator features including flight path replication, moving source and targets, and multiple target options. Data may be entered in multiple formats, including target and radar speed and direction, start-stop LONG-LAT and speeds, and directly with pre-programmed map placements.

System Features
Specifications
Product Configurator
Brochure

Eastern OptX Series 5000 moving target generators covering radar frequencies from 1 to 40 GHz. These compact systems provide target generation with Doppler from 0 to 3 MHz, and allows the user to set target and radar source speeds and directions. Systems may be operated remotely using wireless control with scenario generator features including flight path replication, moving source and targets, and multiple target options. Data may be entered in multiple formats including target and radar speed and direction, start-stop LONG-LAT and speeds, and directly with preprogrammed map placements.

All Series 5000 Doppler Generators may be used together with the Eastern OptX Series 3000 delay lines to create both Doppler and stepwise target and source movements. This combination creates a complete moving target replication. Doppler may be synchronized to pulsed radar systems or operated in free-running mode. When free-running the Series 5000 provides continuous, glitch-free operation. 19-inch rack mount version available.

System Features
• Available for L, S, C, X, Ku, and Ka bands (0.5 to 40 GHz)
• 0 to 3 MHz Doppler Shift
• Stable and repeatable performance
• Moving target generation
• Continuous, glitch-free operation
• Radar Pulse Synchronization for improved side-band suppression
• Available as built-in delay line and target generator option in Series 3000 Systems
• Ultra-High Resolution Doppler Frequency Control for improved side-band suppression and target speed selection

Modes
• Free Running
• Synchronous (Triggered from the falling edge of the radar pulse, built in detection, or from external trigger)
• Slew Rate: 100 ms
• Inputs for target speed and direction and radar source speed and direction
• Bands (GHz): 1-2, 2-4, 4-8, 8-12,12-18 Series

Series 5000 Doppler Generator

Parameter	Specifications	Notes
Doppler Range	0 to 3 MHz	Other ranges available
Slew Rate	100 ms	Jump time to any frequency
Typical RF Loss	12 dB
Input Return Loss	15 dB	Minimum
Target Direction	Opening, Closing, and Lateral	Programmable
1 dB Input Compression	-15 dBm	Minimum
Noise Figure	12 dB Typical	Lower NF optional
Step Size	0.5 Hz	Depending on max frequency
RF Connector	SMA (Jack)	Other Types Available
Dimensions	3” x 12” x 14”
Control	Windows-based Tablet	Supplied with system (USB PC control capable)
Modes	Synchronous, free running, phase inverting, blanking	External signal required
Input/Output Impedance	50 Ω	Nominal

Series 5000 Configurations

Feature	Primary Band (GHz) (35 dB typical side-band suppression)	Broad Band (GHz) (20 dB typical side-band suppression)
5000-1	1 to 2	0.5 to 2.5
5000-2	2 to 4	1.5 to 5
5000-3	4 to 8	3 to 10
5000-4	8 to 12	6 to 14
5000-5	12 to 18	6 to 19
5000-8	34 to 38	18 to 40
5000-7	User Defined
