Model 1200 Low Loss Ground to Antenna Tower Top Link

Product Details

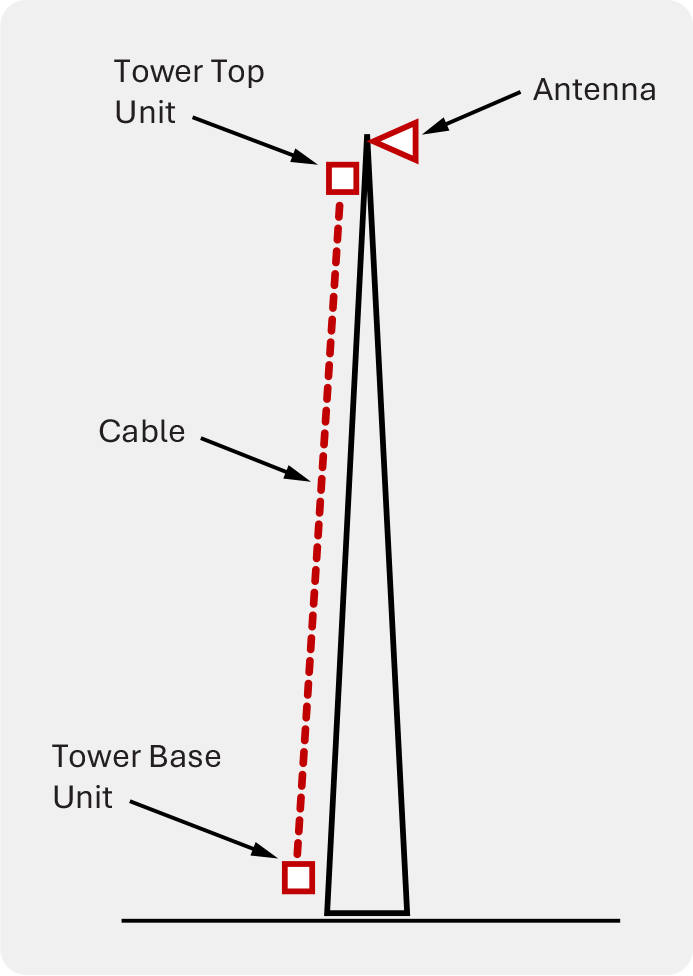

The Eastern OptX Model 1200 Low Loss Ground to Antenna Tower Top Link dramatically reduces the loss associated with RF Cable links (Up to 40 GHz) used in antenna tower connections. These connections are often found in Radar test systems and Communication systems.

The 1200 not only reduces signal loss and SNR degradation, but also provides a turn-key solution, including cables, antennas, Tower Top Units, Tower Base Unit, and System Control. Custom options available. USB and Ethernet control. DC and AC power options.

Complete Turn-Key System

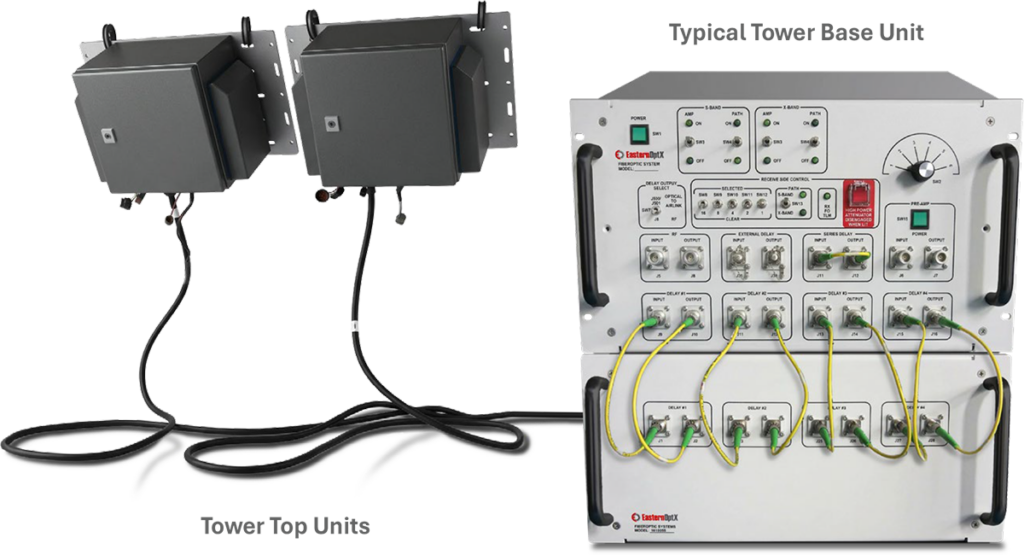

Cables, Antennas, Tower Top Units, Tower Base Unit, System Control

RF over Fiber Links.

Tower Top Mounted Transceiver

Gain Control

0.1—40 GHz Operation

Weather Tight Housings

Compatible with Radar Repeater and Target Simulation System

Programmable (SCPI Commands)

Intuitive Control Panel

Easy Connectivity

Single and Full Duplex Operation

RF over fiber low-loss antenna links.

Radar Repeaters

System Description

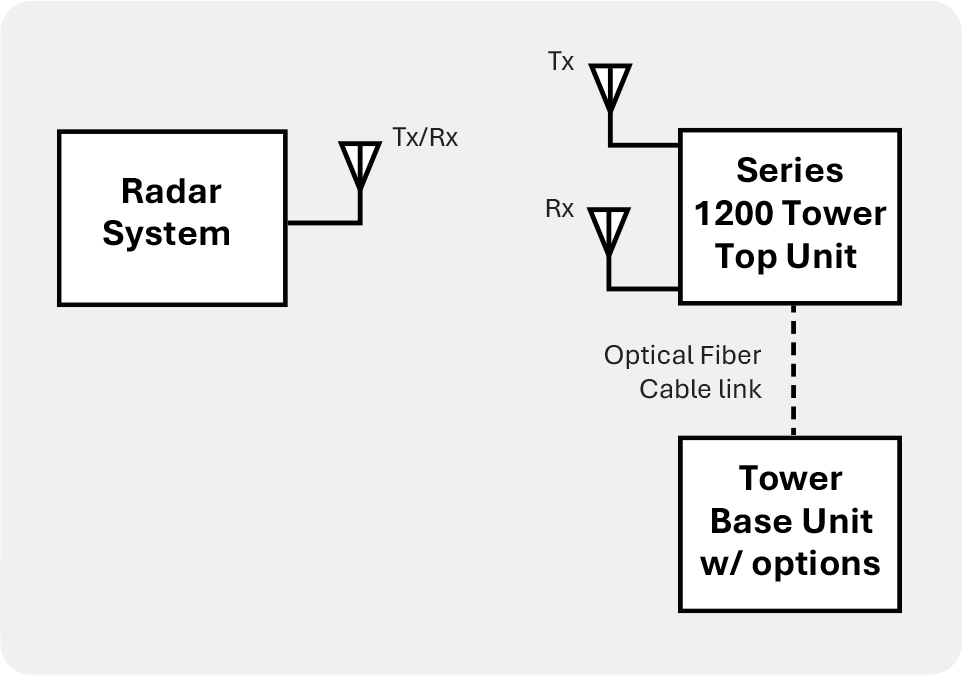

The 1200 receives the signal transmitted from the radar, converts it for optical fiber transmission, relays the signal to the base unit, demodulates, and may then be further processed. That processing may include target simulation (propagation loss and delay) or may be made available for other user signal processing. After processing, the resulting signal is modulated for optical transmission, transmitted to the tower top unit, converted back to RF, and transmitted. Additional features include tower top gain control, transmit and receive isolation, Doppler generation, multipath interference, and wanted and unwanted interferers.

Parameter Specification Notes
Input/Output Isolation 60 dB Minimum
Low Loss 0.5 dB typical
Repeatability 0.1% At constant temperatures
Lightweight < 40 lb Antenna Unit, including mounting plate
VSWR 2:1 Maximum
Spurious Free Dynamic Range 100 dB/Hz 2/3 Minimum
1 dB Input Compression -15 dBm Minimum
Noise Figure 25 dB (13 dB Typ.) Maximum (Lower NF optional)
Input/Output Impedance 50 Ω Nominal
Dimensions 19″ Rack Per EIA-310-D 3u, 18″ -22″ depending on design, base unit

Typical system performance: Frequency range: 0.1 to 40 GHz, Cable length: 1 – 100 m
