E3001 Microwave Delay Line

Product Details

The E3001 / Microwave Delay Line is a high-performance turnkey solution for radar and communications market. With three selectable delays the E3001 allows for ultra wide bandwidth, low loss, high isolation, and immunity from EMI and EMP with time delays up to 100 msec at frequencies from 0.1 to 6 GHz.

Features
Applications
Download Brochure

Easy, repeatable operation

Delays available to 100 µec

Optional delay-matched propagation loss

Radar target simulation

Signal processing

Extension of radar range sites

E3001 Microwave Delay Line

E3001-XXX-XXX-XXX

Parameter	Specification	Notes
Frequency Range	.1 – 6 GHz	For higher frequencies, please see our Series 1000 data sheet
Delay Accuracy	1%	NIST Traceable
Delay Repeatability	0.01%	At constant temperature

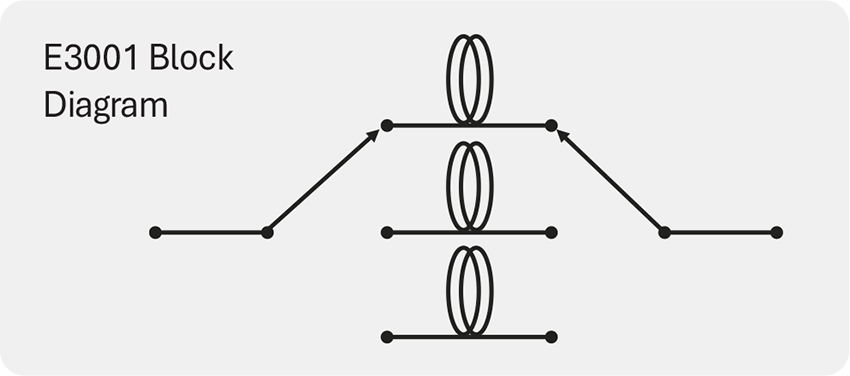

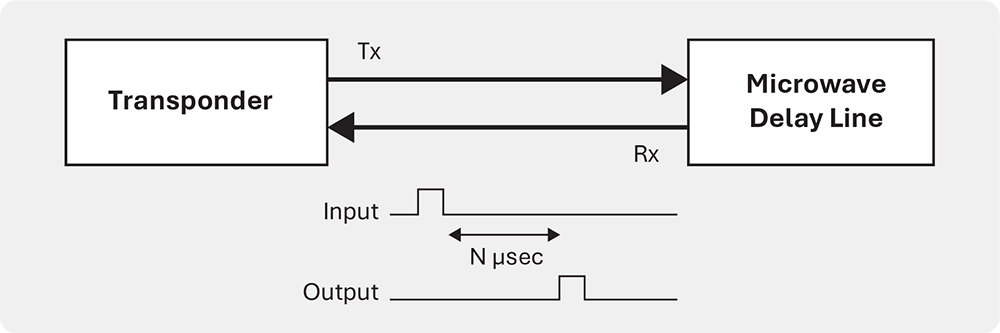

Delay Configuration	Three Discrete Delays	See Block Diagram
Delay Range (Each Delay)	Up to -100 µsec
VSWR	2 : 1	Maximum
Spurious Free Dynamic Range	120 dB / Hz ^2/3	Typical
Maximum Input Power	10 dBm	CW or Pulsed
External Delay	1 – 100 µsec	External delay spools optional
Input/Output Impedance	50 Ω	Nominal
Dimensions	19” Rack Per EIA-310-D	3U, 22” deep
Power	120/230 VAC	Rechargable battery available
Input Output Connectors	Type N (Female)	Optional SMA
Delay Control	Front Panel Rotary Switch
