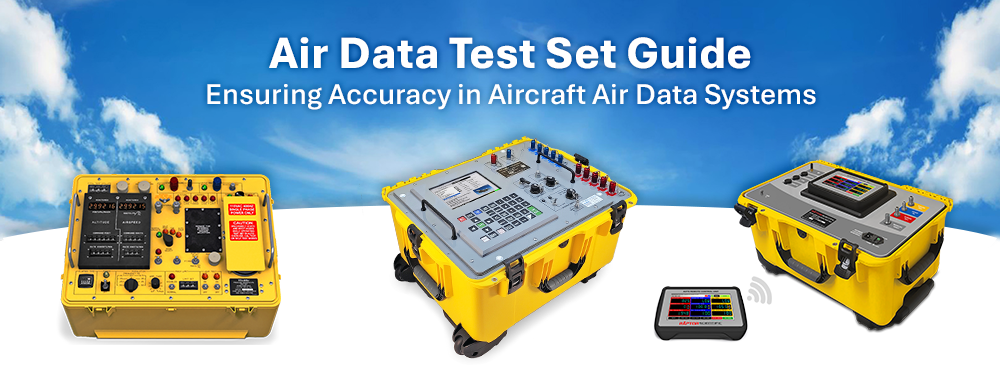

Air Data Test Set Guide: Ensuring Accuracy in Pitot-Static and Air Data Systems

Air Data Test Set Guide: Ensuring Accuracy in Pitot-Static and Air Data Systems

Maintaining accurate pitot-static readings is essential for safe and reliable aircraft operation. TestVonics Air Data Test Sets (ADTS) are designed to help operators and maintenance crews verify and maintain the performance of critical flight instruments with precision and efficiency.

Understanding the Pitot-Static System

An aircraft’s pitot-static system plays a vital role in avionics by supplying critical air data to instruments used for navigation and control. It consists of:

• Pitot tubes, which sense dynamic pressure from the aircraft’s forward motion, and
• Static ports, which detect ambient atmospheric pressure.

These values are used to calculate key flight parameters such as:

• Airspeed
• Altitude
• Vertical speed
• Mach number
• Angle of Attack (AoA)
• Angle of Slip (AoS)

Because these measurements directly impact flight operations, any inaccuracies—no matter how small—can have serious safety implications.

Why Regular Testing of Pitot-Static Systems Is Essential

Periodic validation of the pitot-static system is critical for maintaining accurate readings on instruments like the Altimeter, Airspeed indicator, and Vertical Speed Indicator. Some aircraft also rely on this system to drive readings for manifold pressure or engine pressure ratio (EPR) gauges.

Air Data Test Sets simulate the conditions experienced during flight, allowing technicians to:

• Detect system leaks
• Verify sensor and instrument accuracy
• Ensure calibration remains within tolerance

Most aircraft are tested every 12 to 24 months, depending on FAA or other guidelines and aircraft specifications. Routine testing is not only a safety imperative but also a regulatory requirement.

The TestVonics Advantage in Air Data Testing

TestVonics is a trusted name in precision air data testing solutions. Our ADTS equipment—recognized for its durability, reliability, and performance—is utilized by:

• U.S. and foreign military forces
• Civil aviation operators
• OEMs and MRO facilities worldwide

Our commitment to quality is backed by ISO 9001:2015 certification and ISO/IEC 17025:2017 accredited calibration services. We stand behind every product we build with responsive support and continuous innovation.

Key Factors in Selecting the Right ADTS

When choosing an Air Data Test Set, several important considerations will ensure the best match for your aircraft and operational needs:

Aircraft Configuration and Pressure Range

Lighter aircraft and helicopters typically require systems that operate within lower pressure ranges. In contrast, larger commercial or high-performance military aircraft demand more powerful ADTS units that can simulate higher altitudes and faster airspeeds. TestVonics offers models that cater to both light general aviation and heavy-duty applications.

RVSM Certification

Aircraft flying between FL290 and FL410 (29,000 to 41,000 feet) must comply with Reduced Vertical Separation Minimum (RVSM) standards. All TestVonics ADTS models are fully RVSM-compliant, ensuring your test procedures meet the strict requirements for high-altitude airspace.

Pressure Channel Configuration

Test sets come in different channel configurations to match your system design:

• Two-channel units test both pitot and static lines.
  This includes our ADTS-3350ER Test Set.
• Three-channel units support advanced testing, including Angle of Attack (AoA) or Angle of Slip (AoS) simulations.
  This includes our ADTS-3250 Air Data Test Set

TestVonics versatile lineup includes both options to support everything from basic checks to complex multi-channel diagnostics. See our entire Air Data Test Set lineup here.

SmartProbe® Testing Support

Modern aircraft increasingly use SmartProbe® systems, which integrate multiple sensors to enhance air data measurement. Testing these systems requires ADTS units with advanced capabilities and independent pressure channels. TestVonics ADTS models are designed with this compatibility in mind, ensuring reliable SmartProbe® testing and calibration.
