Portable Temperature Calibrators

Product Details

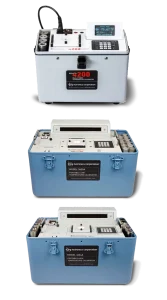

Our Portable Temperature Calibrators are highly accurate dry well temperature standards designed for testing and calibrating thermometers, temperature sensors, thermocouples, RTDs, and temperature switches. The dry well design and precision adapter chucks provide excellent heat transfer into the device under test and fast heating and cool-down times.

These calibrators are suitable for applications outside the lab where variable environmental conditions exist. Each dry well calibrators is designed for a specific temperature reference range; sub-ambient/low temp (-40F – 250F), mid temp (95F – 662F), and high temp (100F – 1200 F).

Features
Specifications

Unique dry well design and precision adapter chucks eliminate the need for messy thermal transfer oils.
Excellent accuracy and temperature stability.
Microprocessor control for safety and ease of use.
Rugged aluminum cases protect the units from harsh environmental conditions and include storage for adapters and accessories.
Designed for simple field service and maintenance.
All models conform to rigorous U.S. Military specifications.

Model No.	4200	3603-A	3604-A	3605-A
Temperature Range:	95°F to 662°F (35°C to 350°C)	100°F to 600°F (38°C to 315°C)	100°F to 1,200°F (38°C to 649°C)	-40°F to 250°F (-40°C to 121°C)¹
Accuracy:	0.25°F (0.14°C)	±0.5°F Throughout Range	±0.8°F from 100°F to 600°F ±0.15% of Setpoint > 600°F	±0.5°F Throughout Range
Setpoint Stability:	0.05°F (0.027°C)	±0.15°F	±0.15°F	±0.15°F
Well Uniformity:	0.25°F (0.14°C)	±0.3°F	±0.5°F	±0.5°F
Ambient Temp. Range: Operational Storage		32°F to 120°F -67°F to 167°F	32°F to 120°F -67°F to 167°F	32°F to 120°F -67°F to 167°F
Readout Units:	Fahrenheit (F°) or Celsius(C°)	Fahrenheit (F°) or Celsius(C°)	Fahrenheit (F°) or Celsius(C°)	Fahrenheit (F°) or Celsius(C°)
Case Dimensions: (L x W x H)	7” x 11” x 10.5” (178x279x267 mm)	11” x 7” x 10”	18” x 11” x 14”	18” x 11” x 14”
Input Power: Voltage Current Fuse(s)		115 VAC, 50-60Hz 3.5 Amps 5 Amps	115 VAC, 50-60Hz 9.0 Amps 10 Amps	115 VAC, 50-60Hz 5.0 Amps 1 Amp and 5 Amps
Weight:	15 lb (6.8 kg)	12.5 lbs.	44 lbs.	44 lbs.
